DATASHEET FOR ALL OTHER POPULAR MODELS

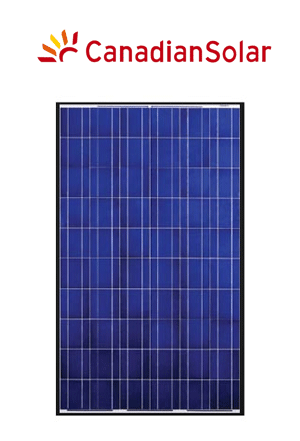

India's Largest Solar Rooftop Power Plant Integrator Canadian Solar – Maxpower – CS6U-340 | 345 | 350 | 355 P
Popular model – Maxpower – CS6U-340 | 345 | 350 | 355 P
ELECTRICAL DATA (STC)
| CS6U | 340 P | 345 P | 350 P | 355 P |
|---|---|---|---|---|
| Nominal Maximum Power (Pmax) | 340W | 345W | 350W | 355W |
| Opt. Operating Voltage(Vmp) | 37.6 V | 37.8 V | 38.1 V | 38.2 V |
| Opt. Operating Current-Imp | 9.05 A | 9.13 A | 9.21 A | 9.30 A |
| Module Efficiency | 17.49% | 17.74% | 18.00% | 18.26% |
Mechanical data
| Cell Type | Poly- Crystalline,6 inches |
|---|---|
| Cell orientation | 72 (6 × 12) |
| Module dimensions | 1960 × 992 × 35 mm |
| Weight | 22.4 kg |
| Glass | 3.2 mm tempered Glass |
| Frame | Anodized Aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
Special features
- Excellent module efficiency of up to: 18.00%
- IP68 junction box for long term weather endurance
- Heavy snow load up to 5400Pa, wind load up to 3600Pa*
- High PTC rating of up to: 92.86%
Please Note
- Other Canadian Solar module series such as Biku Module Front Power Range 350W~365W, Hiku super high power poly PERC module 330W~345W, Hiku 395W~415W, KuMax CS3W-335|340|345|350p, KuMax CS3U-375|38|385|390|395MS, KuMax CS3U-355|360|365|370P are all available to order.
